Specifications
Technology Features

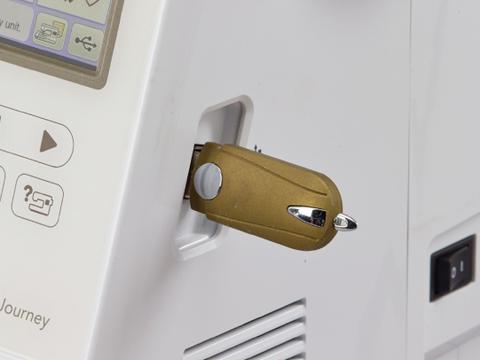

- USB (Type A)
- LCD color touch screen (3.2" x 1.8")
- Advanced needle threader
- Automatic thread cutter
- Quick-Set, top-loading bobbin
- Quick-Set, bobbin winder
- Upper and lower thread sensors to alert when threads are broken
- 2 LED lights illuminate sewing surface
Advanced Sewing Features
- 250 Built-in stitches including:
- 91 Utility (with 10 styles of one-step buttonholes)
- 8 Directional Feeding stitches
- 50 Decorative
- 17 Satin
- 12 Decorative Satin
- 14 Cross stitch
- 58 Combinable utility stitches
- 5 Alphabet Styles
- Side Feeding
- Stitch length 0.0mm - 5.0mm on sewing stitches
- Maximum Utility stitch width: 7mm
- Sewing speed up to 850 spm
- Utility stitch editing capabilities:
- Store personal stitch settings for each utility stitch on machine
- Decorative stitch editing capabilities:
- Edit and combine Character/ Decorative stitches
- Up to 15 stitch patterns (total of about 128KB) can be saved in the machine's memory
- Lock key for Utility and Decorative stitches
- Variable needle positions
- Back to the Beginning key returns to the beginning of a decorative stitch pattern
- Twin needle settings key
Embroidery Capabilities
- Built-in embroidery design library:
- 141 Embroidery designs which include 90 Baby Lock exclusive designs
- 140 Frame Patterns\
- 13 Font styles in upper and lower case including
- Extra large block alphabet and characters (32 total)
- Exclusive script alphabet and characters (72 total)
- Up to 5" x 7" (130mm x 180mm) embroidery field
- Reads embroidery designs with a stitch capacity of up to 200,000 stitches per design
- Memory for saving embroidery patterns up to 1MB
- Customize embroidery pattern and thumbnail background colors
- Embroidery design editing:
- Enlargement (up to 20%)
- Reduction (up to 10%)
- Mirror imaging
- 1°, 10°, and 90° pattern rotation
- LCD color touch screen shows
- Estimated embroidery time display and stitch count
- Needle position placement (1, 10, or 100 stitch increments)
- Measurements displayed in inches or millimeters
- Thread color indicator
- On-screen hoop size indicator
- 8-Point trial check points
- Thumbnail images viewed at 150% the normal size
- Embroidery speed up to 650 spm
- 300 Color names
Warranty
- 25-year limited manufacturer's warranty
- 10-year parts
- 5-year circuit board
- 5-year electrical
- 1-year labor
