Specifications
Technology Features

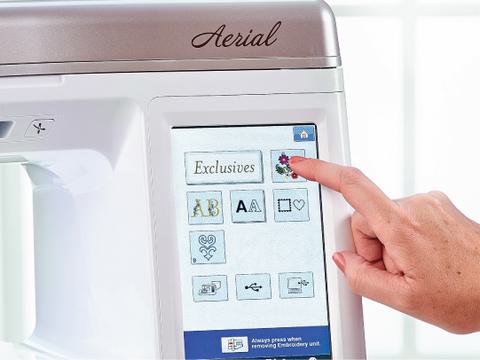

- LCD Color Touchscreen
- Shows 260,000 colors
- Measures 7" diagonally
- Clock and Date
- Enhanced Stadium Lighting for brighter true color LED lighting of 10" around the needle
- 2 USB drives: 1 (Type A) drive, 2.0 connects with a mouse,
hub, flash drives and CD-ROM drives and 1 (Type B) USB
direct connect to a PC
- Access designs stored in folders when using USB Type A
- NeverMiss™ Threading System
- Automatic thread cutter
- Quick-Set, top-loading bobbin with sensor
- Quick-Set independent bobbin winding system with variable speed
- Automatic sensors
- Thread tension control makes tension adjustments for accurate stitches
- Upper and lower thread sensors to alert when threads run out
- Onscreen hoop sensor to recommend size of hoop
- Embroidery speed up to 1,050 spm
Sewing Features
- 757 Built-in stitches including
- 138 Utility with 14 one-step buttonhole styles
- 442 Decorative
- 20 Satin
- 77 Decorative satin
- 17 Cross
- 63 Combinable Utility
- 5 Built-in alphabets
- Maximum utility stitch width: 7mm
- Stitch length 0.0mm - 5.0mm
- Automatic Fabric Sensor System adjusts presser foot pressure and tension to deliver perfect stitch
- Advanced Pivoting Feature
- Ergonomic hands-free presser foot lift with extra high setting 10mm automatic and 13mm manual

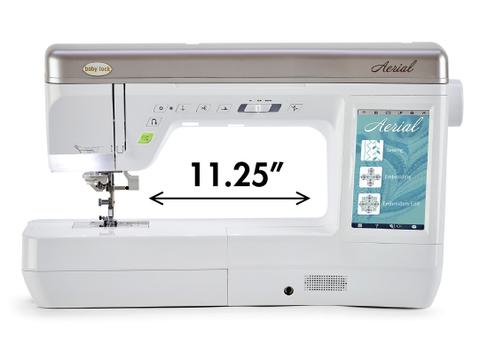

- 11.25" Workspace to the right of the needle
- LED lights illuminate 10" around the needle
- Sewing speed up to 1,050 spm
- Automatic drop feed
Advanced Sewing Features
- Utility stitch editing capabilities
- Stores personal stitch settings for each Utility stitch on machine
- Decorative stitch editing capabilities
- Back to the Beginning key, returns to the beginning of a decorative stitch pattern
- Edit and combine Character/ Decorative stitches
- 24 Memory Pockets for Character/Decorative stitches equaling 1 MG
- Store additional stitch combinations on your
- PC using the 2 USB ports
- Mirror-image capability for stitches
- Lock key for stitches keeps current settings
- 57 Variable needle positions
- Programmable needle up/down
- Upper and lower thread sensors to alert when threads are broken
- Lateral and diagonal feeding
- Fully automatic built-in darning
- Twin needle settings
Convenience Features
- Convenient one-touch buttons for:
- Start/Stop
- Reverse sewing
- Reinforcement stitch
- Needle up/down
- Thread cutter
- Automatic presser foot lift
- Auto threading
- Needle plate with scale in inches and centimeters
- Additional seam markings on bobbin cover for needle position preference
- Free arm
- Two accessory storage compartments
Embroidery Features
- Built-in embroidery design library
- 262 Embroidery designs built-in
- 165 Baby Lock exclusive designs
- 12 Floral vine alphabet accents and frame patterns
- 13 Bobbin work designs
- 140 Frame combinations
- 19 Font styles including
- Exclusive script alphabet characters
- Large floral vine alphabet

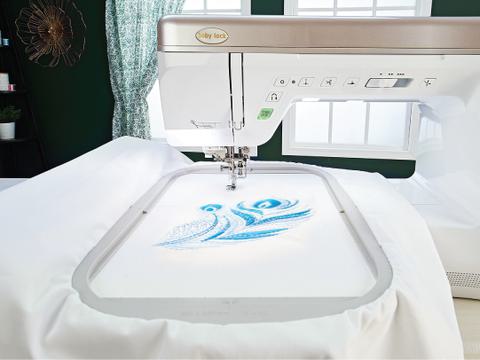

- Embroiders up to 8" x 12" (200mm x 300mm) embroidery field
- Memory capacity 1MB
- Reads embroidery designs with a stitch capacity of up to 500,000 stitches per design
- Color Touch Screen shows:
- Design placement using drag and drop capabilities
- Estimated embroidery time display and stitch count
- Needle advancement (1, 10, 100 or 500 stitch increments or entire thread color)
- Measurements displayed in inches or millimeters
- Color separation
- Thread color indicator
- Onscreen hoop size indicator
- Low bobbin thread indicator
- 300 color names
- 9-point trial check points
- Starting point key for instant alignment of characters or patterns
- Alternate bobbin case for pre-wound bobbins
- Custom embroidery pattern and thumbnail background colors (66 options)
- Resume feature
- On-screen grid
- Cuts jump stitches (with on/off capability)
- Stitch Count System – .SCS
Embroidery Editing Features
- Combine embroidery designs on screen
- Character/text array function
- Multi-line text function
- Character spacing
- 1°, 10°, and 90° Pattern rotation
- Design enlargement (up to 20%)
- Design reduction (up to 10%)
- Automatic basting
- Mirror imaging
- Change color selections within designs
- Color sorting on border designs
- Monochrome option for embroidery designs
- Programmable custom thread color selection
Warranty
- 25-year limited
- 10-year parts
- 5-year computer circuit
- 5-year electrical
- 1-year labor
