Specifications
General Information
- Space to the Right of the Needle - 10" (254 mm)
- Workspace Height 5" (127 mm)

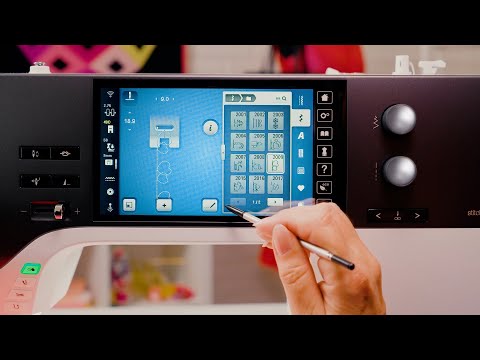

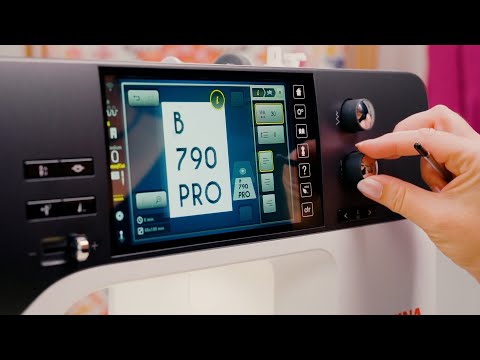

- Centrally Located Color Touch Screen 7" (177.8 mm)
- Multi-function Knobs

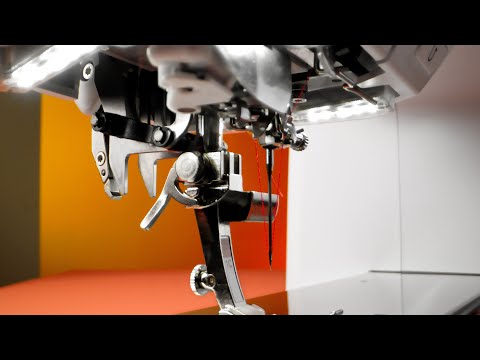

- LED Sewing Lights 30
- NEW: Automatic Needle Threader
- Semi-automatic Needle Threader

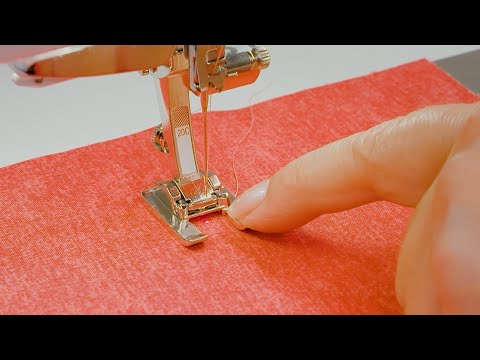

- NEW: BERNINA Pinpoint Laser
- NEW: WiFi
- NEW: stitchprecision2 Technology
- Total Stitch Control
- BERNINA Adaptive Thread Tension
- BERNINA Dual Feed

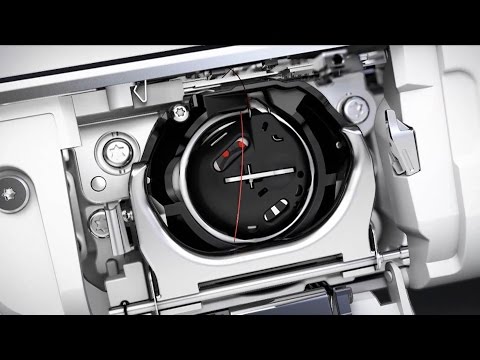

- Hook System - BERNINA
- Jumbo Bobbin with 70% more Capacity
- Bobbin winding while sewing/embroidering
- Powerful DC Motor
- BERNINA Free Hand System (FHS)
- Programmable BERNINA Foot Control
- Thread-up Command
- Automatic Presser Foot Lifter
- Automatic Thread Cutter
- Manual Thread Cutters - 3
- Adjustable Presser Foot Pressure
- Lower Thread Sensor
- Upper Thread Sensor
- Tutorial
- On-screen Help
- Eco Mode
Sewing & Quilting
- Maximum Sewing Speed (stitches per minute) - 1,000 spm
- Maximum Stitch Width - 9 mm
- Maximum Stitch Length - 6 mm
- Adjustable Needle Positions - 11
- Presser Foot Selection
- Security Function for Needle and Stitch Plate
- Sideways Motion
- Connecting stitches
- Tapering
- Automatic Buttonhole / Length Measuring System
- Manual multi-step buttonhole
- Button sew-on program
- Personal Memory
- Temporary Altered Stitch Memory
- History Function (most recently used stitch patterns)
- Stitch Designer
- Creative Consultant Sewing
- Pattern Repeat - 1-99 (NEW)
- Pattern Begin
- Pattern End
- Mirror-image function
- Elongation
- Basting Stitch - Stitch #21
- Long Stitch
- Triple Stitch
- Backstepping
- Programmable Securing Function
- BSR enabled
- BSR 3 Mode
- KickStart Function
- Start/Stop Button (stitching without foot control)
- Freearm Sewing
- Monograms (with sideways motion only)
- Total Number of Sewing Stitch Patterns (incl. alphabets) - 2,040
- Alphabets - 9
- Monograms - 1
- Decorative Stitches - 700
- Button Sew-On Program - 1
- Buttonholes/Eyelets - 16/2
- Practical Stitches 38
- Sideways-Motion Stitches - 139
- Quilting Stitches 70
- Tapering/Skyline Stitch Patterns - 28/30
- Darning Programs - 2

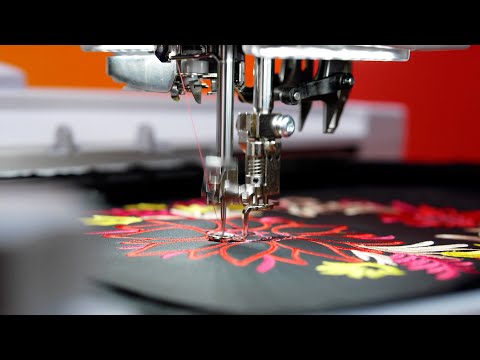

Embroidery
- Maximum Embroidery Speed (stitches per minute) - 1,000 spm
- Embroidery Area - 15,7 x 8,3"(400 x 210 mm)
- Freearm Embroidery
- Built-in Embroidery Designs - 500
- Embroidery Alphabets - 25

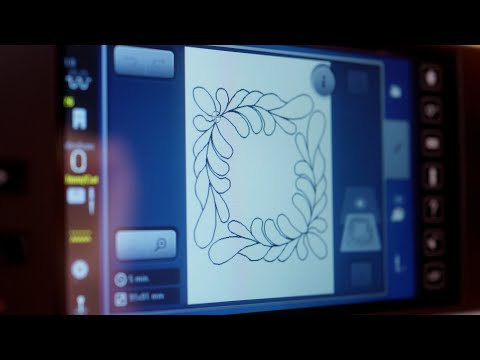

- NEW: Customizable Quilt Designs (.bqm files) - 76

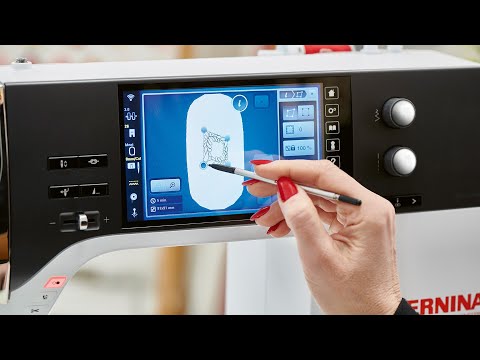

- On-screen Editing of Designs: position, mirror, rotate, scale, combine
- Change Design Size Proportionally/Non-Proportionally
- NEW: Align/Distribute embroidery designs

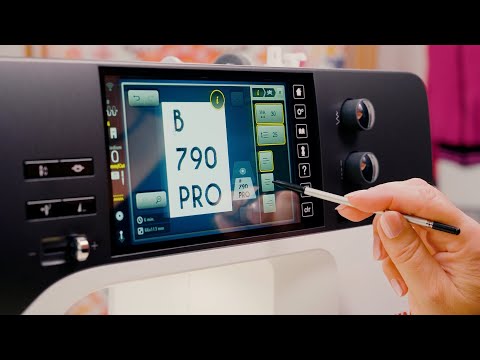

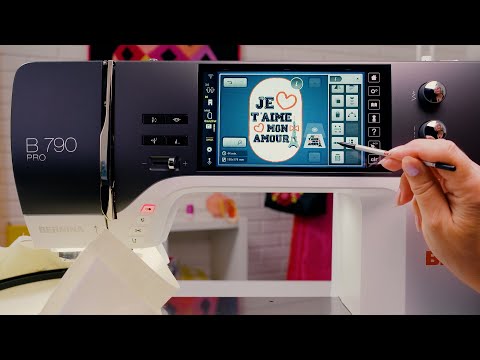

- NEW: Multi-line Lettering and Align
- Endless Embroidery
- NEW: Shape Designer
- Color Wheel
- NEW: QWERTY Keyboard
- WordArt
- Drag and Drop
- Absolute Check Design Positioning
- NEW: 4-Point Placement with Morphing
- 2-Point Placement
- Lock scaling
- Check Design Size
- Group/Ungroup
- Rearrange designs
- Undo/Redo
- Adjust Stitch Density
- Change Stitch Type
- Basting
- Color Resequence
- Stitch Design as Single/Multi-Color
- Personal Memory for Saving Embroidery Designs
- Programmable Jump Stitch Cutting
- Smart Secure
- Invisible Secure
- Thread Away Mode
- Creative Consultant Embroidery
- Embroider Sewing Stitches
- Multi-format Reading (EXP, DST, PEC, JEF, PCS, SEW, XXX)
- NEW: BQM Format Reading
- NEW: Adjust Stitches Per Inch (BQM)
- NEW: Direct Design transfer to/from BERNINA Embroidery Software 9 via WiFi
- Automatic Hoop Recognition
- View Stitch-out Time, Thread Colors, Size, Stitches

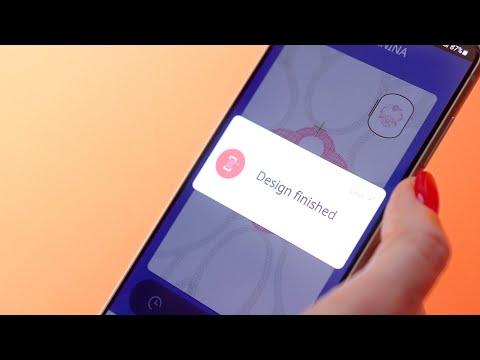

- NEW: BERNINA Stitchout App compatible
- Stitch Sequence Control
- Position Recall
- Jumbo Hoop Compatibility
- Maxi Hoop Compatibility
- Mega Hoop Compatibility
- Midi Hoop Compatibility
- Small Clamp Embroidery Hoop Compatibility
- Medium Clamp Embroidery Hoop Compatibility
- Large Freearm Embroidery Hoop Compatibility
Warranty
BERNINA International AG, Steckborn, Switzerland warrants the product identified below to be free of any defects in workmanship and materials under normal use upon the terms and conditions hereinafter set forth. This warranty is offered solely for the private, non-commercial use of the product.
This warranty will be in force only for the periods of warranty duration, specified herein when the product is owned by the original purchaser and is limited solely to the repair or replacement of original parts which, in the opinion of BERNINA International AG, are defective in workmanship or material and which are returned to the Dealer from whom the unit was purchased or to such other point as may be designated by BERNINA International AG.
Warranty
This warranty shall extend for a period of:
- 2 Years: in the case of electrical parts;
- 5 Years: in the case of printed circuit boards, and;
- 20 Years: in the case of mechanical parts from the date of purchase of the product.
The liability of BERNINA International AG, shall be limited solely to the cost of the affected part and does not include labor charges. All other costs, including the costs of shipment to the Dealer from whom the product was purchased or to such other point as may be designated by BERNINA International AG, for service or repair under this warranty, shall be those of the purchaser.
Each BERNINA product will be fully checked by an authorized BERNINA Dealer at the time of purchase and said product is to be returned to authorized Dealer or to such other point as may be designated by BERNINA International AG, for all repairs or replacements covered by this warranty. This limited warranty is given subject to the following additional terms and conditions:
- BERNINA International AG, shall be under no obligation to honor any claim under this warranty in the event that said product has been misused, neglected, damaged in transit or has been tampered with in any way or if the specifications supplied by BERNINA International AG, at the time of purchase with respect to proper maintenance and lubrication have not been observed or if the serial number affixed to the machine has been tampered with or defaced or if the original bill of sale, warranty certificate for the machine or other proof of purchase acceptable to BERNINA International AG, is not presented at the time service or repair is sought under this warranty.
- Within ninety (90) days after this warranty shall not be valid until and unless a warranty is completed and returned countersigned by an authorized BERNINA Dealer, or the product is registered via the BERNINA Customer Portal within thirty (30) days after the date of purchase of said product.
- Within ninety (90) days after the date of purchase of said product, the purchaser shall have received from the authorized BERNINA Dealer from whom the machine was purchased, any and all instructions in the use of the product which may be provided by such Dealer.
- The product must be unplugged from the power source when not in use.
NOTICE:
The user assumes the risk of what this warranty does not cover and there is hereby excluded, liability for defects, failure, loss, deterioration, personal injury or damage which are due to (i) ordinary wear and tear or exposure, (ii) misuse, abuse, alteration, negligence, or (iii) the installation of parts other than genuine BERNINA parts or equivalents.
PLEASE NOTE:
In no event shall BERNINA International AG be liable to the purchaser of said machine or to third parties for special or consequential damages, including, but not limited to death or personal injuries.
BERNINA International AG does not assume or authorize any person to assume on its behalf, any other obligation or liability other than set forth herein.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives the purchaser specific legal rights, and the purchaser may also have other rights which vary from State to State.
There are no implied warranties of merchantability or fitness for a particular purpose that extend beyond the express warranty described on the face hereof. To the extent, the laws of any state create or recognize any implied warranties for this product, the duration of those warranties shall not extend beyond the duration of the BERNINA limited warranty.
This warranty is not transferable and is in addition to any warranty by the Dealer. BERNINA International AG is not party to and shall not be bound by any other warranty given in connection with the product identified below.
